A283/Q195 Cold Rolled Steel Coil

A283/Q195 Cold Rolled Steel Coil
ASTM A283 cold rolled steel coil has low and medium tensile strength. The ASTM A283 steel specification covers four structural quality grades of mild steel, grades A, B, C, and D, for general application.
WhatsApp: +86 18866517318
Email: sale05@hmt-steel.com
A283/Q195 Cold Rolled Steel Coil
  • A283 steel coil exhibits excellent work hardening properties during cold forming for its high strength and plasticity. After repeated cold working deformation, the coil can still show similar strength and hardness, with even better ductility and toughness. In addition, due to its good welding performance, the coil can be easily welded into parts of various shapes and sizes, and the welding quality is stable and reliable. A283 steel coils are widely used in the manufacturing of various mechanical parts, such as bolts, nuts, pins and other standard parts as well as various non-standard mechanical parts. In addition, they are also used in the manufacture of building structural materials.


    Product Parameters

    Product Name

    A283/Q195 Cold Rolled Steel Coil

    Production Process

    Hot Rolling, Cold Rolling

    Material Standards

    AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.

    Width

    45mm-2200mm

    Length

    Custom Size

    Thickness

    Hot Rolling: 2.75mm-100mmCold Rolling: 0.2mm-3mm

    Delivery Conditions

    Rolling, Annealing, Quenching, Tempered or Standard

    Surface Process

    Ordinary, Wire Drawing, Laminated Film


    Chemical Composition

    A283

    C max.

    Mn max.

    P max.

    S max.

    Si (Greater1 inch, less than 1/2 inch)

    Si (Greater 1/2 inch)

    Cu min.

    Grade A

    0.14

    0.90

    0.035

    0.04

    0.40

    0.15-0.40

    0.20

    Grade B

    0.17

    0.90

    0.035

    0.04

    0.40

    0.15-0.40

    0.20

    Grade C

    0.24

    0.90

    0.035

    0.04

    0.40

    0.15-0.40

    0.20

    Grade D

    0.27

    0.90

    0.035

    0.04

    0.40

    0.15-0.40

    0.20


    Mechanical Properties

    A283

    Tensile Strength

    Yield Strength min.

    Elongation Rate 8 inches

    Elongation Rate 2 inches

    Grade A

    45000-60000 psi

    310-415 MPa

    24000 psi

    165 MPa

    27 % min.

    30 % min.

    Grade B

    50000-65000 psi

    345-450 MPa

    27000 psi

    185 MPa

    25 % min.

    28 % min.

    Grade C

    55000-75000 psi

    380-515 MPa

    30000 psi

    205 MPa

    22 % min.

    25 % min.

    Grade D

    60000-80000 psi

    415-550 MPa

    33000 psi

    230 MPa

    20 % min.

    23 % min.


    Physical Performance

    Physical Performance

    Metric

    Imperial

    Density

    7.80 g/cc

    0.282 lb/in³


    Scope of Application

    ASTM A283 steel plate is a kind of low carbon steel with high strength and good formability. It is easy to process and manufacture, and can be safely welded by various welding methods. ASTM A283 steel plate is a structural carbon steel plate used for low or medium tensile strength applications. ASTM A283 steel plate is used in the manufacture of riveted, bolted and welded structures for storage tanks and cryogenic control vessels, bridges and buildings, including prefabricated buildings, warehouses and industrial commercial structures.

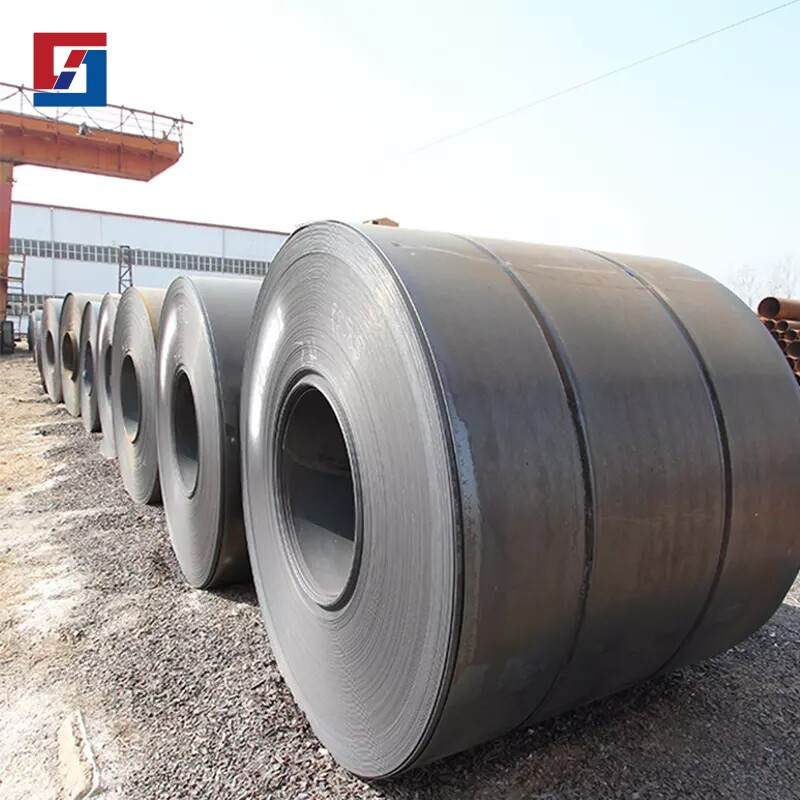

Product Show
