When sourcing hot rolled angle steel or mild steel angle iron for critical structural applications, assuming '1 angle iron' means exactly 1 inch per leg can lead to costly design mismatches and compliance risks. In reality, nominal sizing—used across carbon steel angle, galvanised angle bar, and even C beam steel or channel 150 x 75—often masks true dimensional tolerances. At Shandong Huamate Steel Co., Ltd., we clarify how manufacturing standards (ASTM A6, GB/T 706) govern actual leg thickness, flange width, and root radius—especially vital for procurement teams, project managers, and quality control personnel evaluating carbon steel angle iron or 4 U channel steel. Don’t let nominal labels compromise safety or fit.

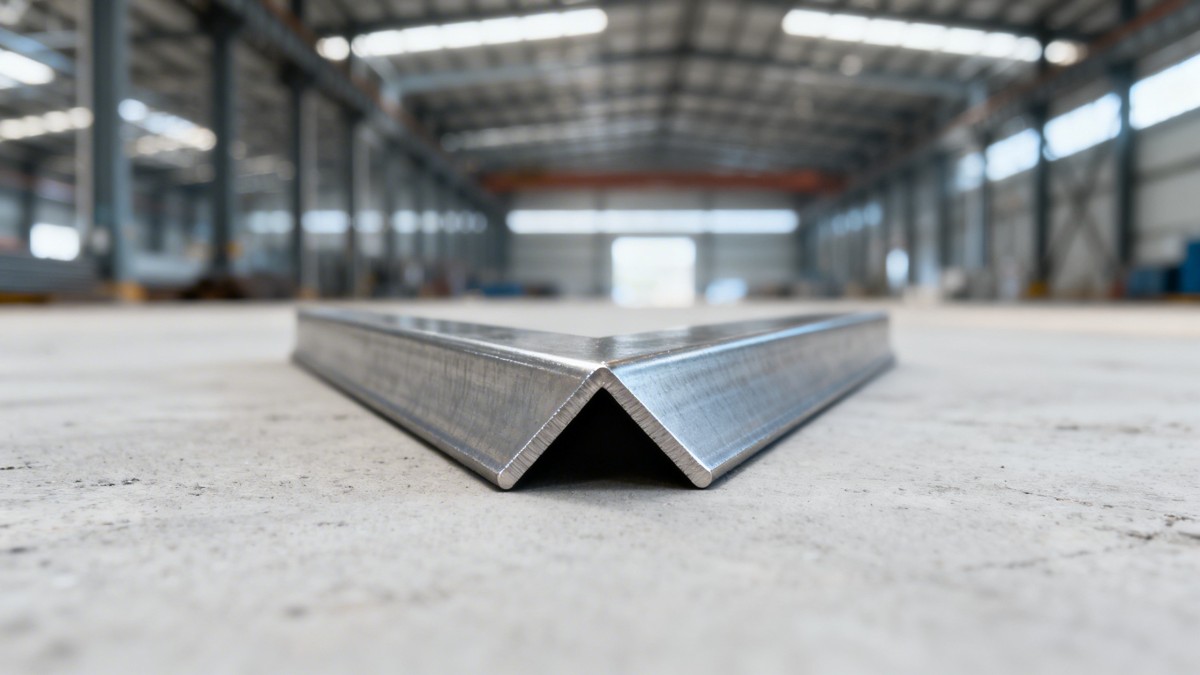

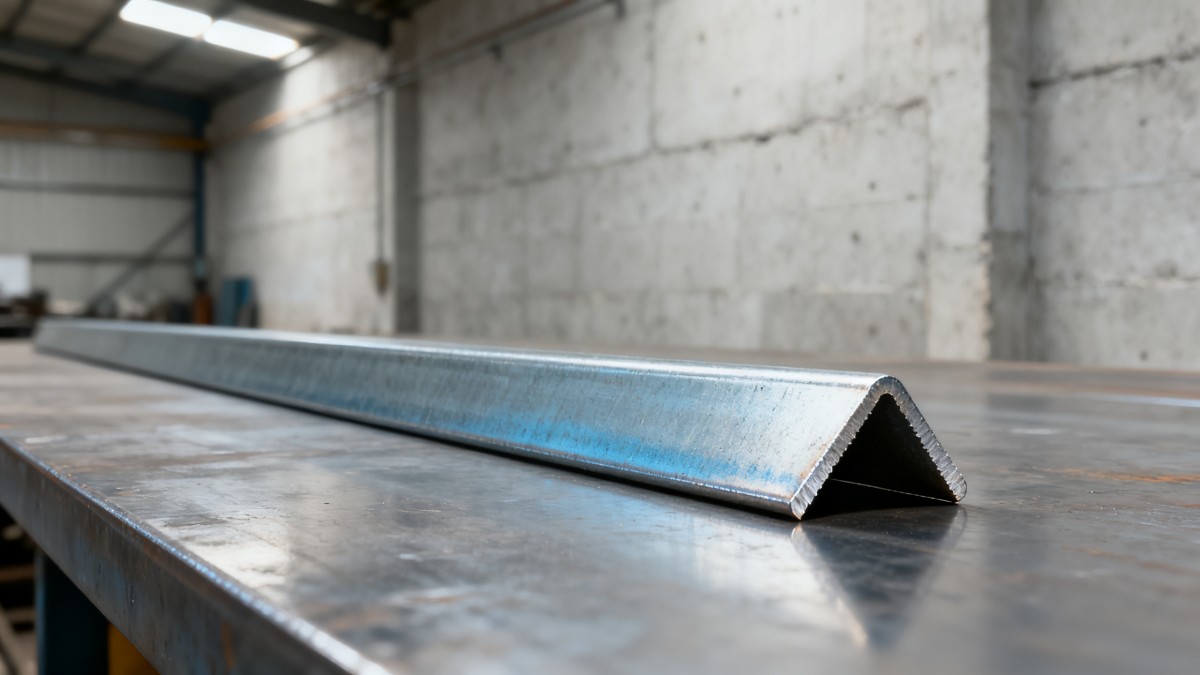

Why “1 inch angle iron” is never exactly 1 inch — and what that means for your project

Nominal size in structural steel refers to a standardized naming convention—not precise measurement. A “1×1×1/8” hot rolled angle iron, for example, is labeled based on approximate leg dimensions and thickness, but its actual measured leg width may be 0.987 inches, and thickness could vary ±0.015 inches per ASTM A6 tolerance. This discrepancy arises from mill rolling practices, thermal contraction during cooling, and intentional allowances for downstream fabrication like drilling or welding.

Misinterpreting nominal as actual becomes especially hazardous in load-bearing frameworks, connection detailing, or modular assembly where millimeter-level gaps affect bolt alignment, weld penetration, or moment transfer. For instance, using 1-inch nominal angle in a truss node designed for true 25.4 mm legs may reduce effective bearing area by up to 3.2%—a non-trivial variance when scaled across hundreds of joints in infrastructure projects.

Shandong Huamate Steel works directly with ISO 9001-certified mills in Liaocheng—the largest steel pipe production base in China—to ensure every batch of carbon steel angle iron, galvanised angle bar, and Flat Steel undergoes third-party dimensional verification against ASTM A6 and GB/T 706. Our mill test reports include certified measurements for leg width, thickness, root radius, and twist—delivered digitally before shipment.

How standards define real-world tolerances — and why you need verified data

ASTM A6 and GB/T 706 specify allowable deviations not just for leg dimensions, but also for angularity (max 1.5° deviation per foot), surface straightness (±1/8 inch over 10 feet), and thickness consistency (±0.015–0.030 inches depending on section weight). These aren’t theoretical limits—they reflect real-world mill capability and are enforced via mill test reports and independent inspection.

This table shows how Huamate’s internal verification thresholds exceed both ASTM and GB requirements—ensuring tighter consistency for engineering-critical uses. We supply full dimensional logs for every order, including coordinate-measured root radius values, which directly impact fatigue life in cyclic loading scenarios common in machinery frames and offshore platforms.

What happens if you skip dimensional validation?

• Bolt holes misaligned by >0.5 mm → rework time increases by 3–5 hours per joint in field erection
• Under-thickness legs reduce yield capacity by up to 12% versus nominal spec—critical for seismic-rated structures
• Excessive root radius variation causes inconsistent weld fusion, increasing NDT rejection rates by 18–22% in pressure vessel fabrication

Procurement checklist: 5 non-negotiable specs to request before ordering angle iron

For procurement officers, project managers, and QC engineers, relying solely on nominal nomenclature invites risk. Instead, anchor your purchase order on these five verifiable criteria:

1. Mill test report (MTR) with certified leg width, thickness, and root radius—not just grade and heat number
2. Tolerance compliance statement referencing ASTM A6 or GB/T 706 (specify edition year)
3. Galvanising thickness report (if applicable): minimum 85 µm per ASTM A123, verified via magnetic gauge at 5 points/meter
4. Straightness certification: max deviation ≤1/8 inch over 10 ft, measured with laser level
5. Traceability documentation: heat-to-batch mapping with furnace log timestamps and cooling rate records

At Huamate Steel, all export orders include digital MTRs, dimensional logs, and galvanising reports pre-shipment—enabling seamless customs clearance and audit readiness across EU, GCC, and ASEAN markets.

Why global buyers trust Huamate for precision steel procurement

Based in Liaocheng—China’s largest integrated steel pipe hub—Shandong Huamate Steel leverages direct mill partnerships with top-tier producers (including Baosteel and Shougang affiliates) to guarantee traceable, specification-compliant supply. Unlike general trading firms, we maintain dedicated QA labs for dimensional metrology, tensile testing, and coating adhesion checks—executed within 48 hours of mill release.

Our one-stop export service covers technical consultation (including CAD-based fit-check support), CIF/FOB logistics coordination (average 7–15 days port-to-port), and multilingual documentation (English, Arabic, Spanish, French). Over 62% of our clients reorder within 6 months—driven by consistent dimensional accuracy, on-time delivery (>98.3% OTD rate in 2023), and responsive engineering support.

Whether you’re specifying carbon steel angle iron for a solar mounting structure in Saudi Arabia, galvanised angle bar for a wastewater plant in Nigeria, or Flat Steel for custom machinery frames in Germany—we deliver certified, documented, and construction-ready material. Request a free dimensional validation sample kit or schedule a live mill tour with our technical team today.
